Honeywell V800C1052 Single-stage natural gas 24 Vac standing pilot gas valve

Name: Honeywell V800C1052 Single-stage natural gas 24 Vac standing pilot gas valve
Brand: Honeywell
SKU: V800C1052
Price: 719.99 USD
Availability: InStock

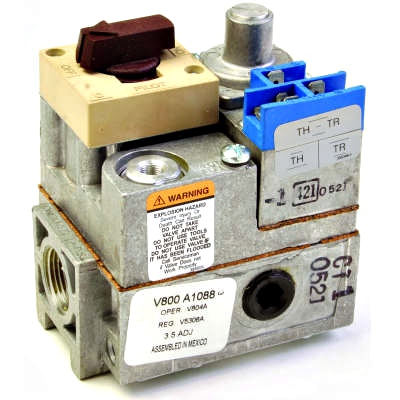

Images for general purposes only. Actual may be different than depicted.

Honeywell V800C1052 Single-stage natural gas 24 Vac standing pilot gas valve

SKU: V800C1052

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 1-2 Weeks	$719.99 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell V800C1052 Single-Stage Natural Gas 24 Vac Standing Pilot Gas Valve

24Vac, Step Opening, Standing Pilot Gas Valve. 3/4 x 3/4" Step Rate 0.9" WC, Full Rate 3.5" WC. Used on gas fired standing pilot appliances with 30 mV thermocouple. These gas controls include a manual gas valve, safety shutoff, single millivoltage automatic operator, pressure regulator, pilot gas filter and flow adjustment, pressure tapping, and thermocouple connector.

Features:

Include pilot flow adjustment screw.
Easy to install, adjust and service; all adjustments and connections are accessible from top of control.
Add separate energy cutoff (ECO) where codes call for dual safety shutoff.
Complete safety shutoff on pilot flame failure.
LITE-RITE (OFF-PILOT-ON) lighting sequence.
ECO connector for V800 models. Part No. 392451-1.

Mounting	0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Operating Temperature Range	0 C to 79 C (32 F to 175 F)
Pressure Ratings	1/2 psi (3.5 kPa)
Inlet/Outlet Size (in.)	3/4 in. NPT x 3/4 in. NPT with 1/2 in. NPT side outlets
Pressure Regulator	Step

Download Product Information:

Honeywell V800C1052 Combination Gas Valve
